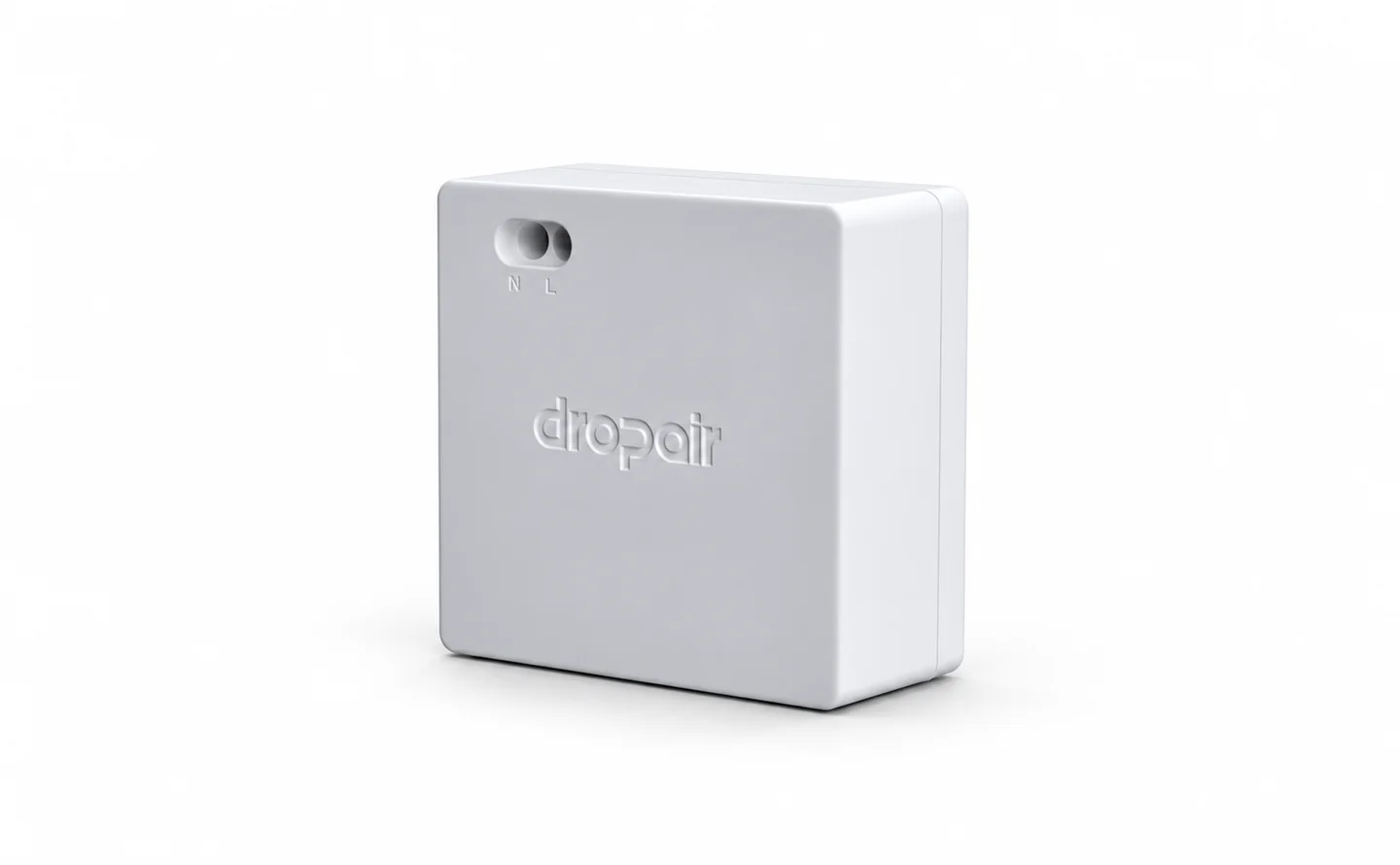

Mini6s
A higher-capability option than Mini6 in the same family. Choose between them based on the needed functions and equipment model.
View product← All products
Dropair product
Mini6
Connects compatible air conditioning equipment with a Smart Controller.
Product overview
Designed for the system already in place
Connects a compatible smart thermostat to the indoor-unit control interface. Compatibility depends on the indoor-unit model, interface and cable.
Mini6 Series installation and service manual · V7.3.2, 2026
Related models
Mini6 family
Add a new control option to existing HVAC, matched to the equipment model.

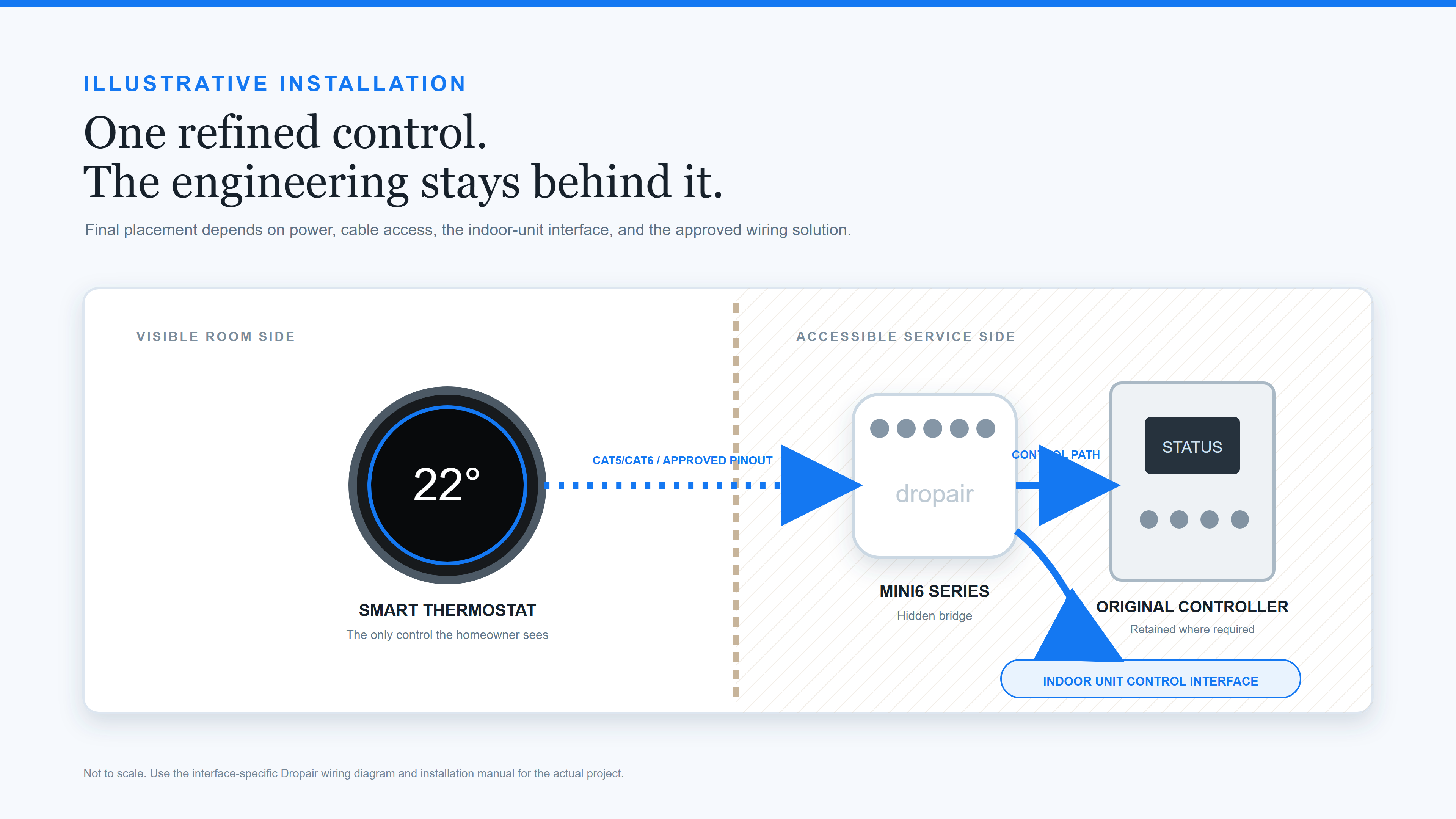

Explore family pageConnection overview
Where the interface sits
01Control sideThermostat or control system
02Mini6Connection interface
03HVAC sideMatched indoor equipment
Manual source
Simplified from the product manual. Terminal wiring is not shown.
Mini6 Series Installation and Service Manual · V7.3.2 · 15 Jun 2026Selection
What to check before choosing.
Have these equipment details ready.
- Full HVAC equipment model
- Existing controller model
- Wiring on site
Manual
Mini6 Series Installation and Service ManualV7.3.2 · 15 Jun 2026
Preview or download the manual. Confirm the model and version before use.
Product specifications
Mini6 specifications
Specifications shown are from the available manual. Confirm the product model and document version before use.
Dimensions (L × W × H)Mini6 Series Installation and Service Manual · V7.3.2 · 15 Jun 2026 · p. 9
54 × 54 × 24.5 mm
WeightMini6 Series Installation and Service Manual · V7.3.2 · 15 Jun 2026 · p. 9
52 g
Enclosure materialMini6 Series Installation and Service Manual · V7.3.2 · 15 Jun 2026 · p. 9
ABS + PC FR3010
Rated inputMini6 Series Installation and Service Manual · V7.3.2 · 15 Jun 2026 · p. 9
100–240 V, 50/60 Hz
Rated outputMini6 Series Installation and Service Manual · V7.3.2 · 15 Jun 2026 · p. 9
24 VAC, 60 Hz, 2.4 VA, 0.1 A max
No-load power consumptionMini6 Series Installation and Service Manual · V7.3.2 · 15 Jun 2026 · p. 9
1.8 W
Looking for something else?

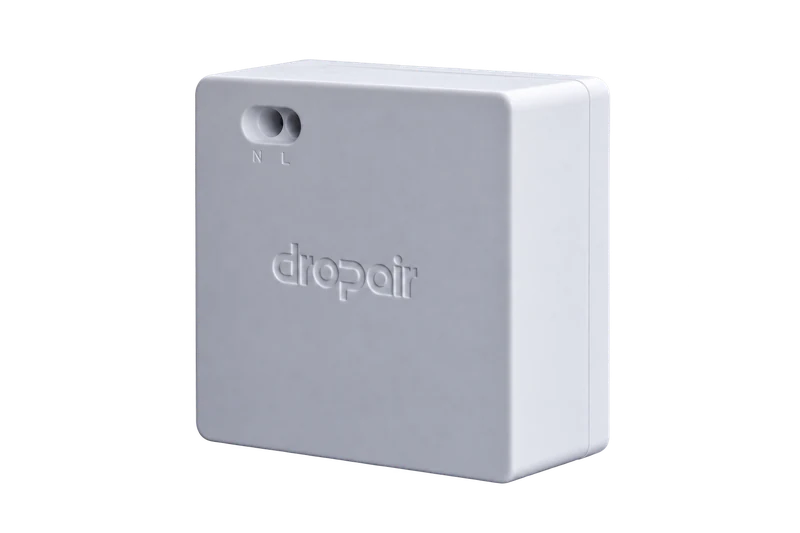

Mini6x
